Nerf Arcade Redemption Game

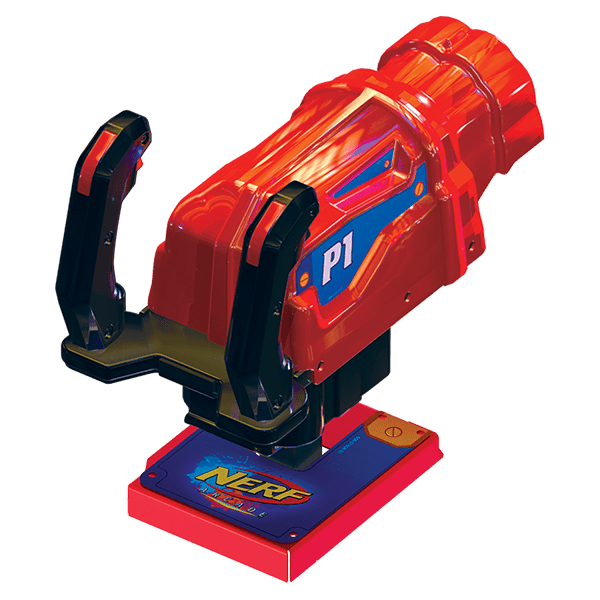

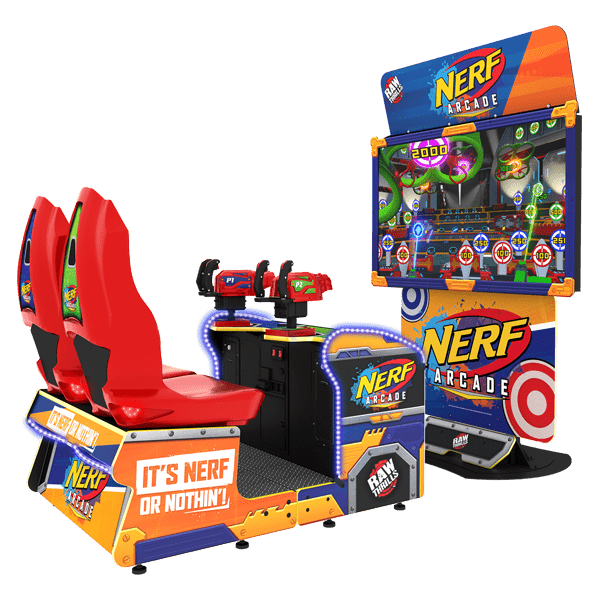

Nerf Arcade hands players two oversized patented Nerf Blasters and points them at a 65-inch commercial-grade LCD. That combination is why the cabinet occupies 106 inches of depth: the blasters are physical hardware aimed across a play area rather than a spinner or a touch panel, and the screen is sized so on-screen targets stay readable from the back of that footprint. Raw Thrills built force feedback into both blasters, so every shot registers in the player's hands, and the Nerf licence means the game explains itself before an attendant says a word.

The assembled cabinet stands 90 inches tall, spans 62 inches wide, and weighs 757 pounds, which puts it in the group of games that need a measured location rather than a spare corner. Electrically it is undemanding: 5A at 120V/60Hz, or 2.5A at 230V/50Hz on the same cabinet. Play runs across four levels with skill-based scoring, online leaderboards, and a 500W sound system, and the game can award tickets, chase a high score, or run in amusement mode depending on how the location is set up.

Measure depth before width. At 106 inches deep and 62 inches wide, Nerf Arcade takes up nearly nine feet of floor front to back, and depth is the dimension operators most often get wrong because it is the one a spec sheet buries last. The 90-inch height is the second check: that is seven and a half feet, so an eight-foot ceiling clears the cabinet but leaves only six inches above it, and any soffit, sprinkler head, duct run, or ceiling-mounted speaker in that zone rules the spot out.

The game arrives on three separate pallets, not one. The main cabinet pallet measures 51 inches high by 46 wide by 33 deep at 246 pounds, the seat pallet 61 by 46 by 35 at 208 pounds, and the misc. pallet 72 by 44 by 35 at 303 pounds. Those three weights total the 757-pound assembled figure, so there is no hidden fourth piece. The number that decides whether the delivery goes smoothly is 46 inches: that is the widest pallet, and it will not pass a standard 36-inch single door. Confirm a double door, a loading bay, or a 48-inch-plus opening on the route from the dock to the floor, and check that 72-inch pallet height against any low overhead door or elevator car.

On power, compare the two ratings rather than reading only the first. Nerf Arcade wants 5A at 120V/60Hz in North America or 2.5A at 230V/50Hz elsewhere. That is a modest draw for a cabinet with a 65-inch LCD and a 500W sound system, and it means the game does not force a dedicated circuit when it lands in a room where the available outlets are already committed. Note the rating you need before ordering, since the voltage the cabinet is configured for is not something to sort out on delivery day.

Judge the revenue side on the scoring model, not the licence alone. Nerf Arcade can award tickets, run as a high-score game, or run in amusement mode, so the same cabinet works in a redemption room where tickets drive the earn and in a location where they are not in play at all. Four levels and skill-based scoring are what keep the second and third play credible; a game where every play ends the same way earns once per visitor. The online leaderboards are the piece that turns a good afternoon into a returning player, so treat the network connection as part of the install rather than an afterthought.
